Happy Earth Day friends! I’m pretty excited because today’s plan is basically to. die. for. So good. And there isn’t much that celebrates our gorgeous green(-ish) earth more than building your own furniture in an environmentally responsible way. No hidden chemicals or blood diamonds are used during the making of your own furniture and of course there is absolutely no animal testing whatsoever. If you can use reclaimed wood or lumber and give your materials a second chance at life while sparing the young growth, well then you have indeed done a good thing. Yahoo.
As with all of our plans, you are building at your own risk and you should have a firm understanding of building in general before you attempt many of our plans (some are easy as pie and perfect for beginners). With that, go forth, have fun, take lots of pictures and share them in a showcase on the site or on social media with the hashtag #builtTDCtuff and we will share our faves! Be sure to tag @thedesignconfidential on Instagram / FB and @thedesconf on Twitter / Pinterest. If you are a blogger and you post about your build, don’t forget to include a link to your post on your showcase here. Don’t forget… for all of our newer plans, clicking on the images will let them expand to enormous sizes with much greater clarity. The older plans may need updating so please let us know if you need one fixed!
- 2 – 1×2 at 8’
- 10 – 1×3 at 8’
- 7 – 2×4 at 8’
- 2-1/2″ Pocket Hole Screws
- 1-1/4″ Wood Screws
- One set of Bed Rail Brackets
- 39 Eye Hook Screws, optional
- 24 feet of paracord
- Countersink Drill Bit
- Pocket Hole Plugs – Paint Grade, Pine, Oak – optional
- Clamps
- Safety Gear
- Wood Filler
- Wood Glue
- Sanding Supplies
- Paste Wax
- Finishing Supplies
- 4 – 2×4 at 11-3/4” – Legs
- 2 – 2×4 at 15” – Headboard Sides
- 2 – 2×4 at 85” – Sides
- 2 – 1×2 at 78” – Cleats
- 1 – 2×4 at 82” – Center Support
- 2 – 2×4 at 9-1/4” – Center Support Legs
- 2 – 2×4 at 78” – Headboard and Footboard Frames
- 2 – 2×4 at 78” – Headboard Supports
- 10 – 1×3 at 78” – Slats
Read through the entire set of instructions and all comments before beginning this project. If you print out or save plans, be sure to check in on my site to be sure you have the most up to date set of plans, as I occasionally update things for ease of building or buying. If you are new to building, read through the GETTING STARTED section and other articles found under the BUILD tab in the menu on my site, it has valuable information about how to get started, tools and techniques. If you are unfamiliar with the finishing process, visit my Finishing school for some tips and tricks for painting like a pro and for special finishing practices. Use glue to secure your joints and Consider Painting or Staining individual sections prior to assembling. This makes the paint application virtually flawless. Coat with a paste wax, spray on Poly, or Wipe on Poly to protect your finish and your piece and it will last for ages. Adhere to all safety standards and guidelines, and be sure you follow safety protocol throughout your build. If you are unsure about whether you are building safely, run a quick online search for the tool or technique you are using, or contact me via email or post to the forum before you move ahead. My contact info can be found in the menu of my site.

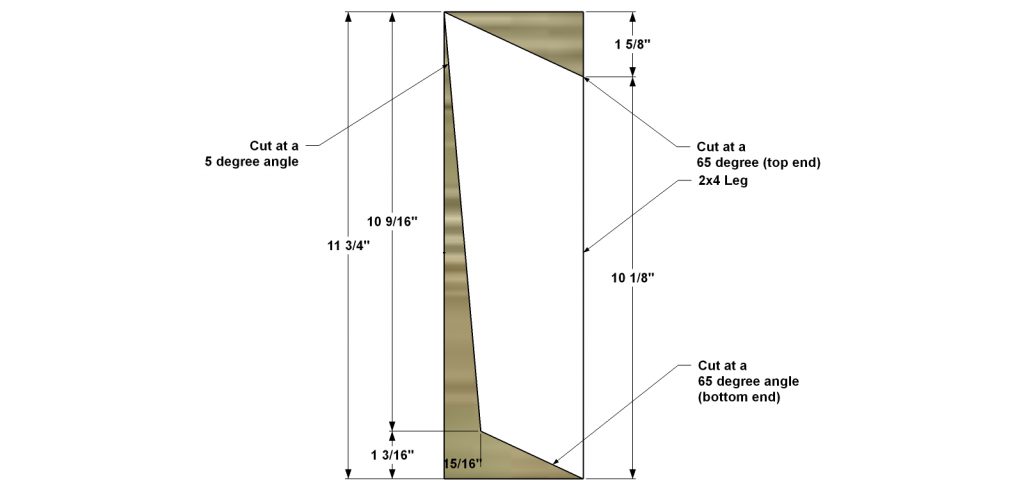

Cut the pieces for the Legs. You can draw out the shape of the Leg through using the measurements or the degree of cut. If using the degree of cut, remember to start at the corners that meet up with the corner of the lumber that will not be cut off (for this example, the top left corner and the bottom right corner). With the Kreg jig set for 1-1/2” material, drill pocket holes in the top ends of each Leg.

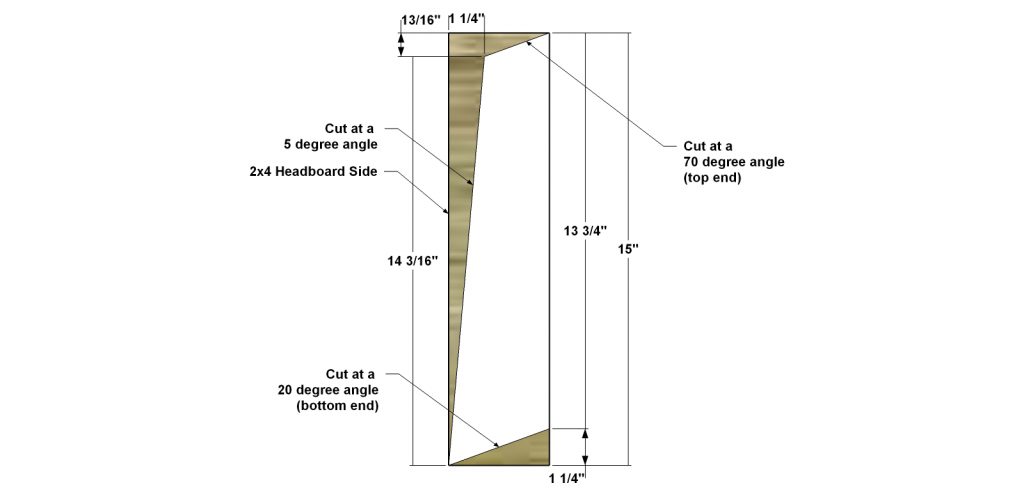

Cut the piece for the Headboard Sides. You can draw out the shape of the Headboard Side through using the measurements or the degree of cut. If using the degree of cut, remember to start at the corners that meet up with the corner of the lumber that will not be cut off (for this example, the top right corner and the bottom left corner). With the Kreg jig set for 1-1/2” material, drill pocket holes in the bottom ends of each Headboard Side.

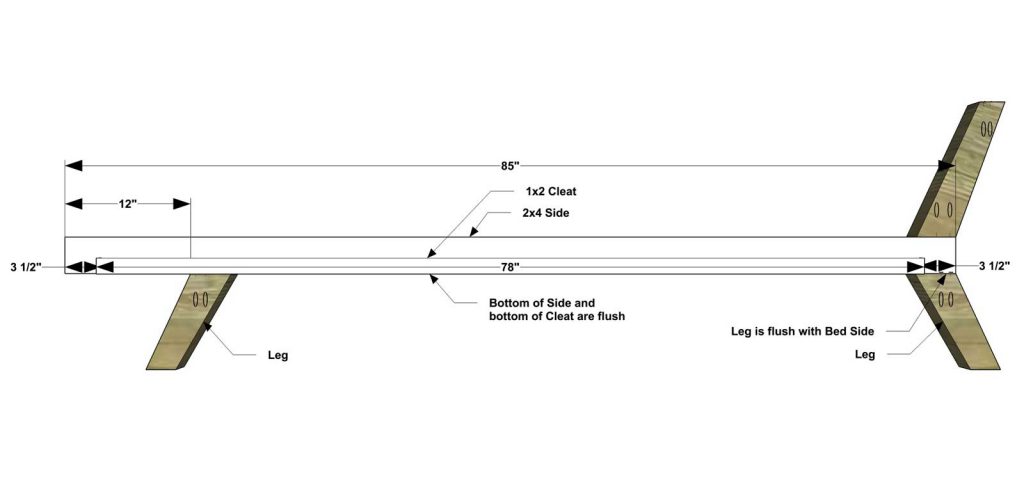

Cut the pieces for the Sides and Cleats. Attach the Cleat to the Side using glue and 1-1/4” countersunk screws leaving 3-1/2” at each end for the bed hardware and Headboard Frame and Footboard Frame. Attach the bed hardware according to the manufacturer’s instructions. Next, Assemble the Headboard Sides and Legs to the Side as shown with glue and 2-1/2” pocket screws. Repeat this step again, mirrored – one assembly for each side of the bed.

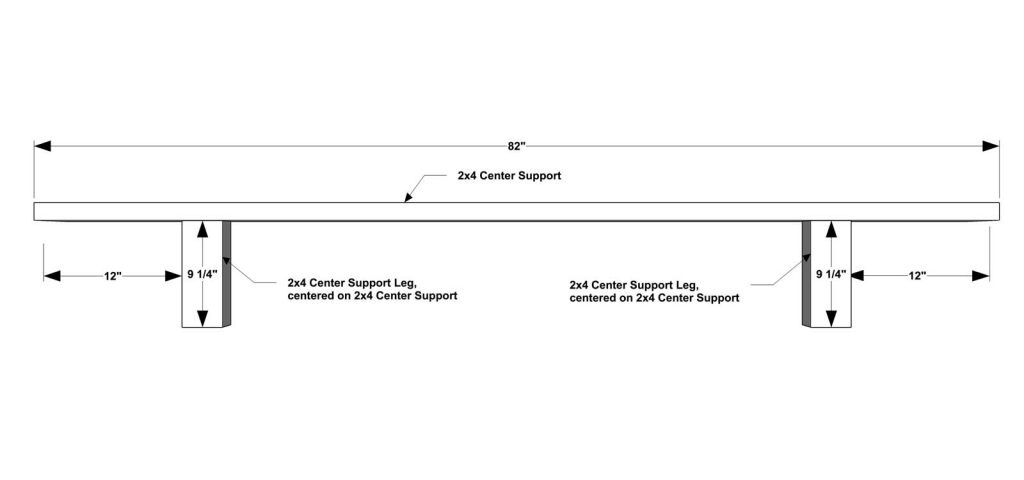

Cut the piece for the Center Support and the Center Support Legs. With the Kreg jig set for 1-1/2” material, drill pocket holes in each end of the Center Support and in the top ends of each Center Support Leg. Assemble as shown with glue and 2-1/2” pocket screws.

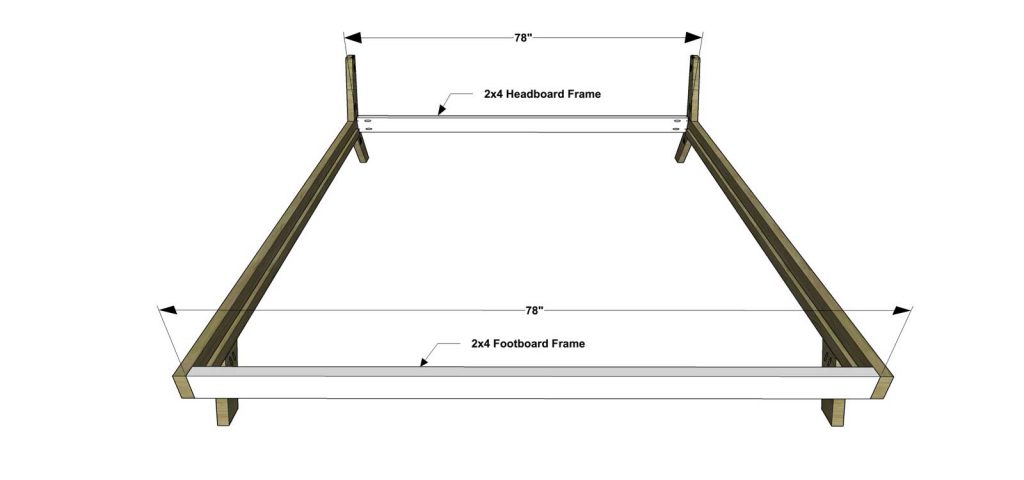

Cut the pieces for the Headboard and Footboard Frames. With the Kreg jig set for 1-1/2” material, drill pocket holes in each end of the Headboard and Footboard Frames. Assemble as shown with glue and 2-1/2” pocket screws.

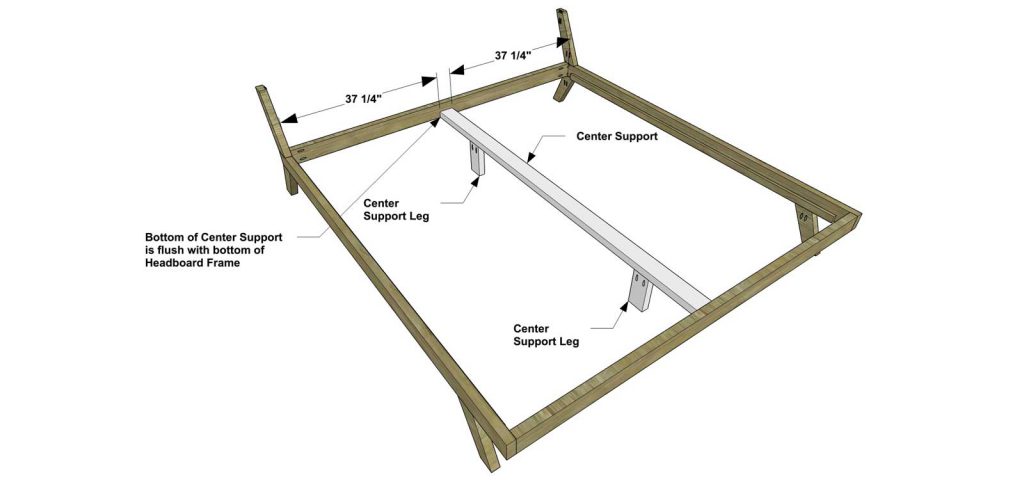

Assemble the Center Support with Center Support Legs as shown with glue and 2-1/2” pocket screws.

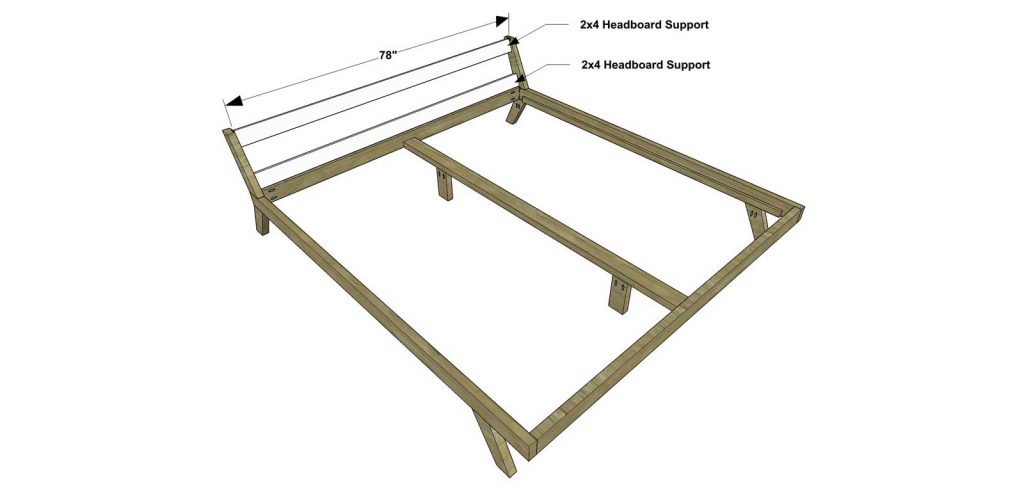

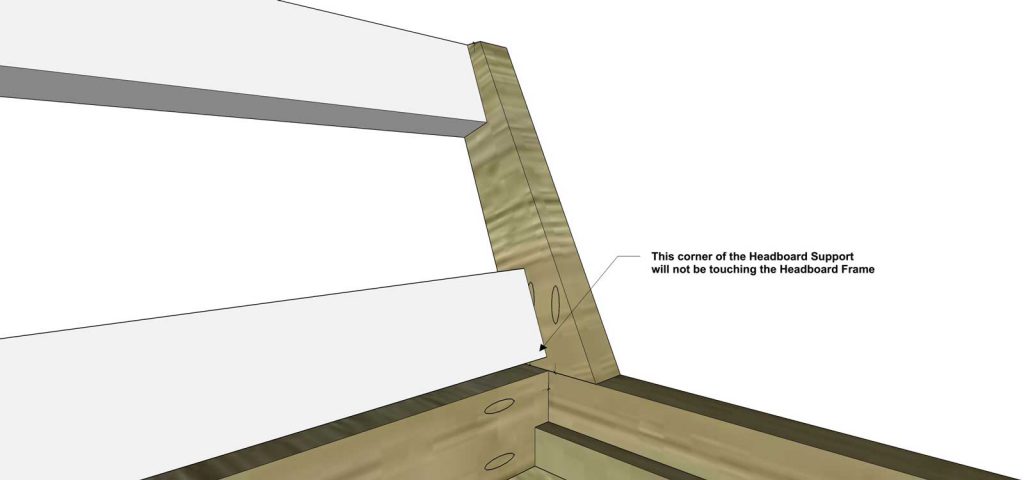

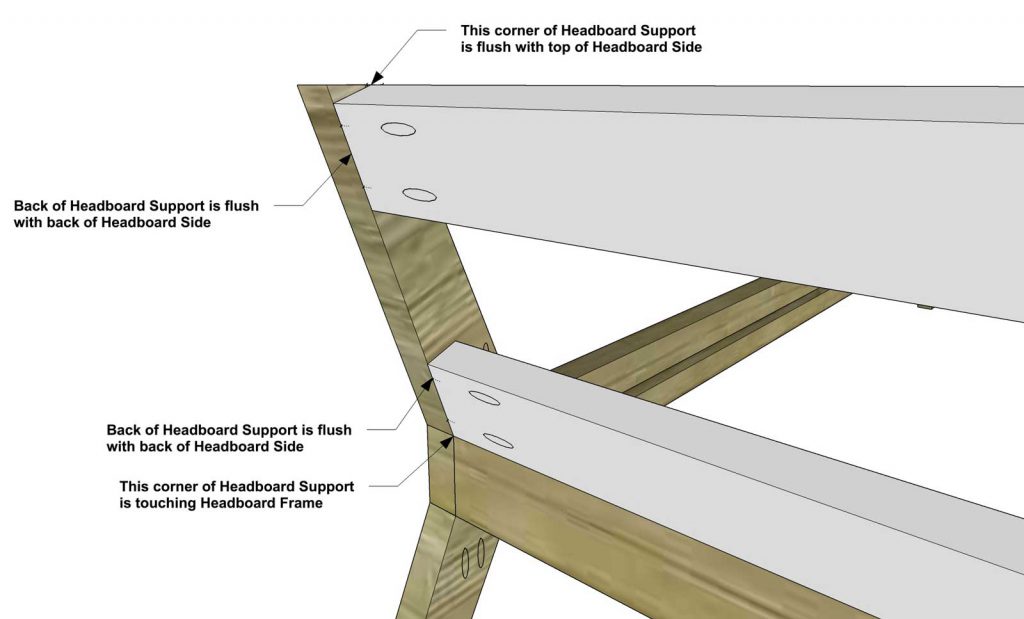

Cut the pieces for the Headboard Supports. With the Kreg jig set for 1-1/2” material, drill pocket holes in each end of the Supports. Assemble as shown with glue and 2-1/2” pocket screws. Included are close-ups of the front and back of the Headboard Supports attached to the Headboard Sides.

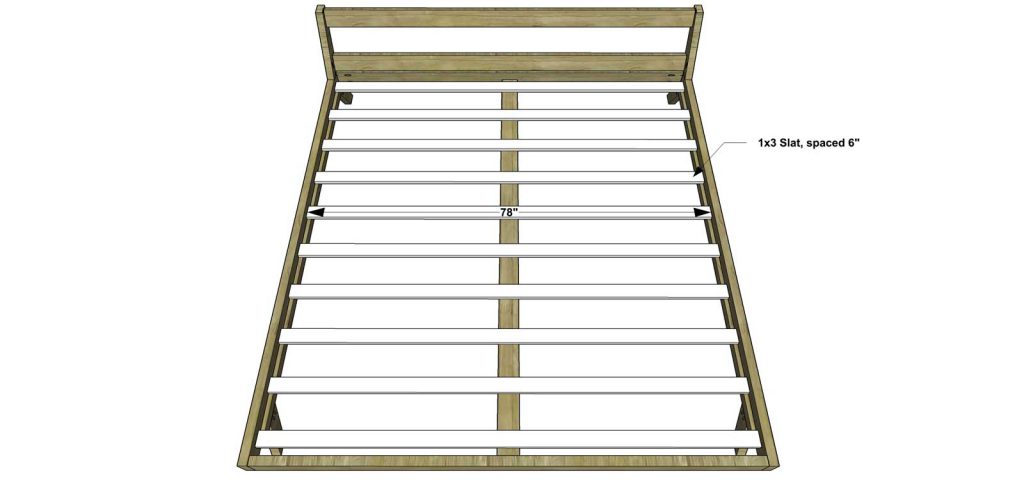

Cut the pieces for the Slats. The Slats will be spaced approximately 6” apart (this graphic shows 1-1/2” spacing near the Headboard Frame and Footboard Frame and 6” spacing elsewhere). Attach to the supports using 1-1/4” countersunk screws.

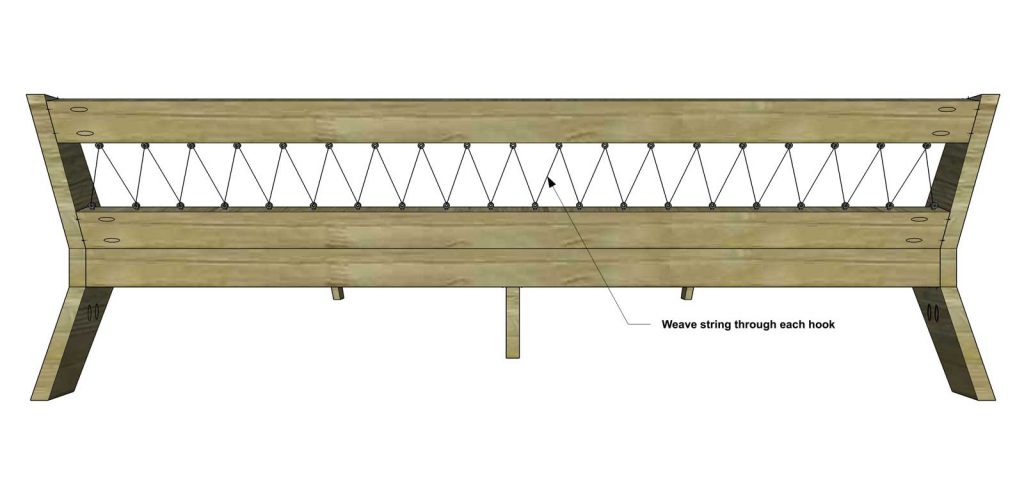

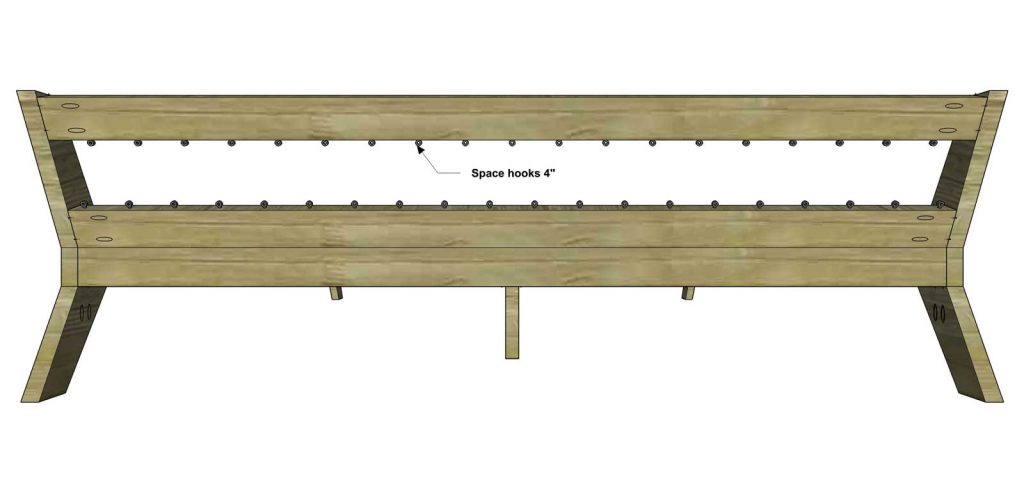

And now for the bonus round! This bed will function great as-is, but if you want to kick it up a notch, add paracord, wire, or bungee to the Headboard (think of all the color possibilities)! This graphic shows several eye hook screws spaced 4” apart on the top and bottom (staggered) on the Headboard Supports. Simply install the eye hook screws and weave your cord through the eye hook screws in a zigzag manner as shown and secure with a solid knot.
Fill any Screw, Nail or Pocket Holes, Sand and Finish as Desired. For Finishing Tips and Tricks visit my Finishing School
