Oh this piece of DIY Furniture might be one of my absolute faves! So utterly versatile and just the coolest… lay it flat to enjoy on your front side or snooze and when you feel like it, simply put it in one of several incline positions to lounge and chat! Isn’t that amazing? Check out the images at the bottom to see how this gal moves and functions! Xx… Rayan
Of course if you prefer a more tradition lounging option our Free DIY Plans to Build a Chesapeake Single Chaise Lounge is a fabulous alternative and let’s not forget the Free DIY Furniture Plans to Build a Chesapeake Double Chaise Lounger for those of you who prefer to snuggle up with another person while you bake or lounge in the sun!
As with all of our plans, you are building at your own risk and you should have a firm understanding of building in general before you attempt many of our plans (some are easy as pie and perfect for beginners). With that, go forth, have fun, take lots of pictures and share them in a showcase on the site or on social media with the hashtag #builtTDCtuff and we will share our faves! Be sure to tag @thedesignconfidential on Instagram / FB and @thedesconf on Twitter / Pinterest. If you are a blogger and you post about your build, don’t forget to include a link to your post on your showcase here. Don’t forget… for all of our newer plans, clicking on the images will let them expand to enormous sizes with much greater clarity. The older plans may need updating so please let us know if you need one fixed!
- Tape Measure
- Saw – Jig Saw, Circular, Table, or Miter Saw
- Drill
- Multi-Square and Carpenter’s Square
- Sander
- Kreg Jig – if you build frequently, invest in this one.
- Nail Gun
- 5 – 1×4 at 8’
- 5 – 1×3 at 8’
- 1-1/4″ Pocket Hole Screws
- 1-1/4″ Wood Screws or 1-1/4″ Brad Nails
- 4 – 2” Clevis Pins (link includes pins + clips)
- 2 – 3” Clevis Pins (link includes pins + clips)
- 6 – Hitch Pins/Clips (appropriate size for Clevis Pins)
- Countersink Drill Bit
- Pocket Hole Plugs – Paint Grade, Pine, Oak – optional
- Clamps
- Safety Gear
- 3/4″ Edge Banding – optional
- Wood Filler
- Wood Glue
- Sanding Supplies
- Paste Wax
- Finishing Supplies
- 2 – 1×4 at 75”– Main Frame Sides
- 2 – 1×4 at 29-1/2”– Main Frame Top and Bottom
- 5 – 1×3 at 31” – Main Frame Slats
- 2 – 1×4 at 19”– Middle Frame Sides
- 2 – 1×4 at 26”– Middle Frame Top and Bottom
- 2 – 1×4 at 2-1/2”– Middle Frame Spacers
- 4 – 1×3 at 27-1/2”– Middle Frame Slats
- 2 – 1×4 at 30-1/4”– Upper Frame Sides
- 1 – 1×4 at 27-1/2”– Upper Frame Top
- 5 – 1×3 at 29” – Upper Frame Slats
Before beginning to build, always check in on my site to make sure you have the most up to date set of plans, I occasionally update and change the plans to make the building process easier or to allow for less expensive purchasing of materials! Read through the entire set of instructions and all comments before beginning this project. If you print out or save plans, be sure to check in on my site to be sure you have the most up to date set of plans, as I occasionally update things for ease of building or buying. If you are new to building, read through the GETTING STARTED section and other articles found under the BUILD tab in the menu on my site, it has valuable information about how to get started, tools and techniques. If you are unfamiliar with the finishing process, visit my Finishing school for some tips and tricks for painting like a pro and for special finishing practices. Use glue to secure your joints and Consider Painting or Staining individual sections prior to assembling. This makes the paint application virtually flawless. Coat with a spray on Poly or Wipe on Poly to protect your finish and your piece and it will last for ages. Adhere to all safety standards and guidelines, and be sure you follow safety protocol throughout your build. If you are unsure about whether you are building safely, run a quick online search for the tool or technique you are using, or contact me via email or post to the forum before you move ahead. My contact info can be found in the menu of my site.

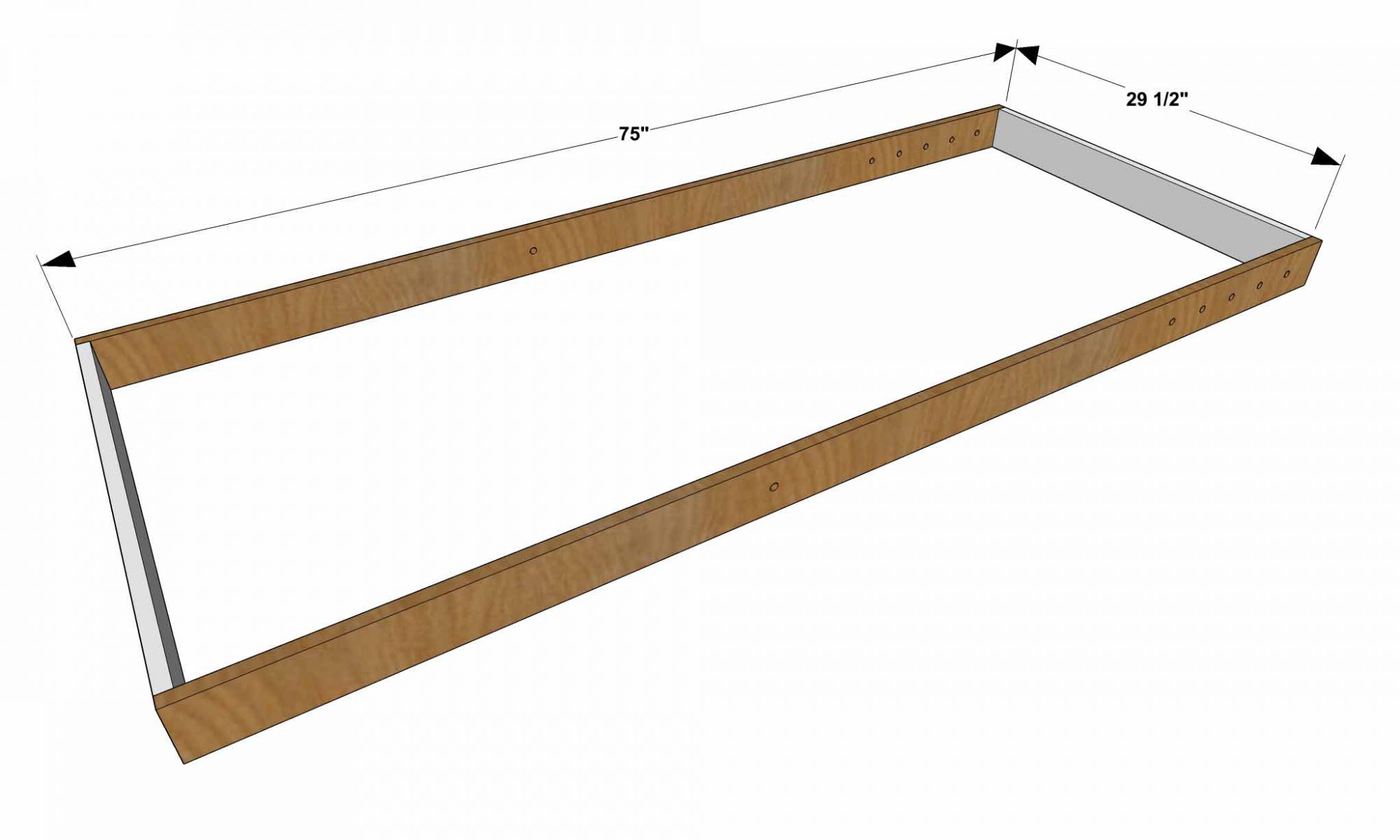

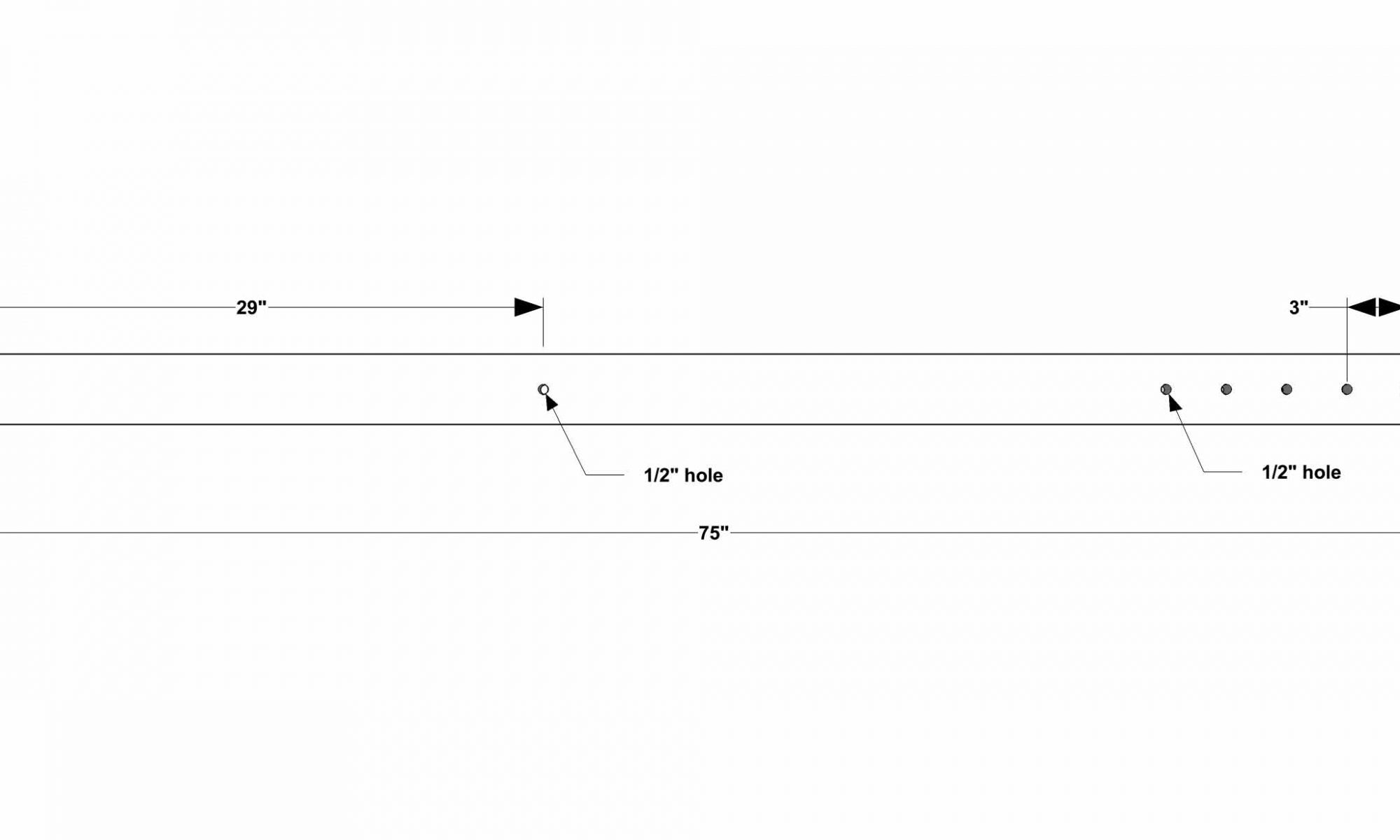

Cut out the two Main Frame Sides. Drill a 1/2” hole 29” from one end of the Side and 1-3/4” from the top. Please note that all hole measurements will be TO the center of the hole. Drill another 1/2” hole 3” from the other end of the Side. Drill a series of 4 more holes in the same manner as shown, 3” on center and 1-3/4” from the top. You can drill more than 5 holes if you wish – this will give you even more adjustment opportunities! You will need to repeat this step twice – once for each Side. If you feel confident, clamp the Main Frame Sides together and drill both holes at once through the pieces.
Cut out the Main Frame Top and Bottom and attach to the Main Frame Sides as shown with glue and pocket screws.

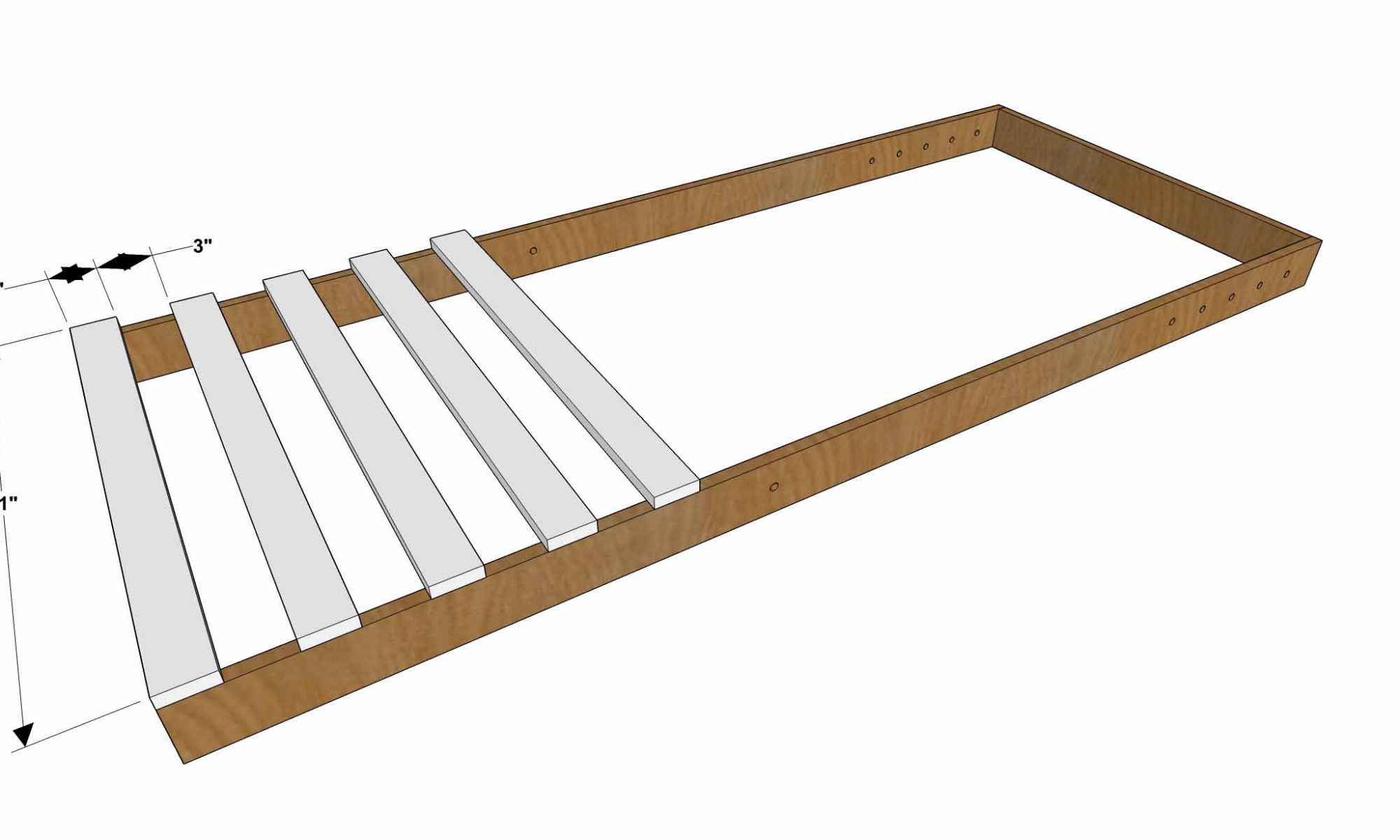

Cut out the Main Frame Slats and attach as shown using glue and 1-1/4” brad nails. Each Slat will be spaced 3” apart.

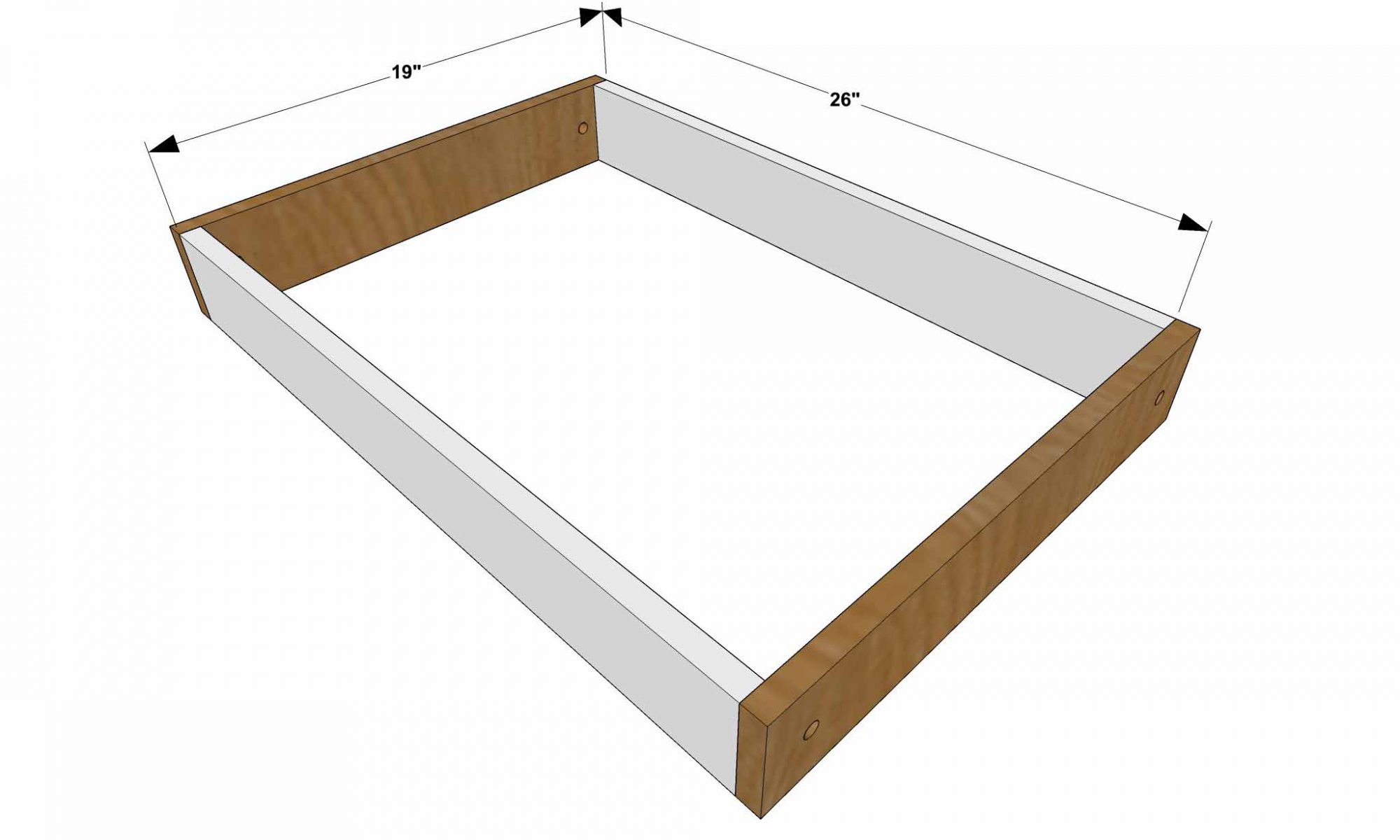

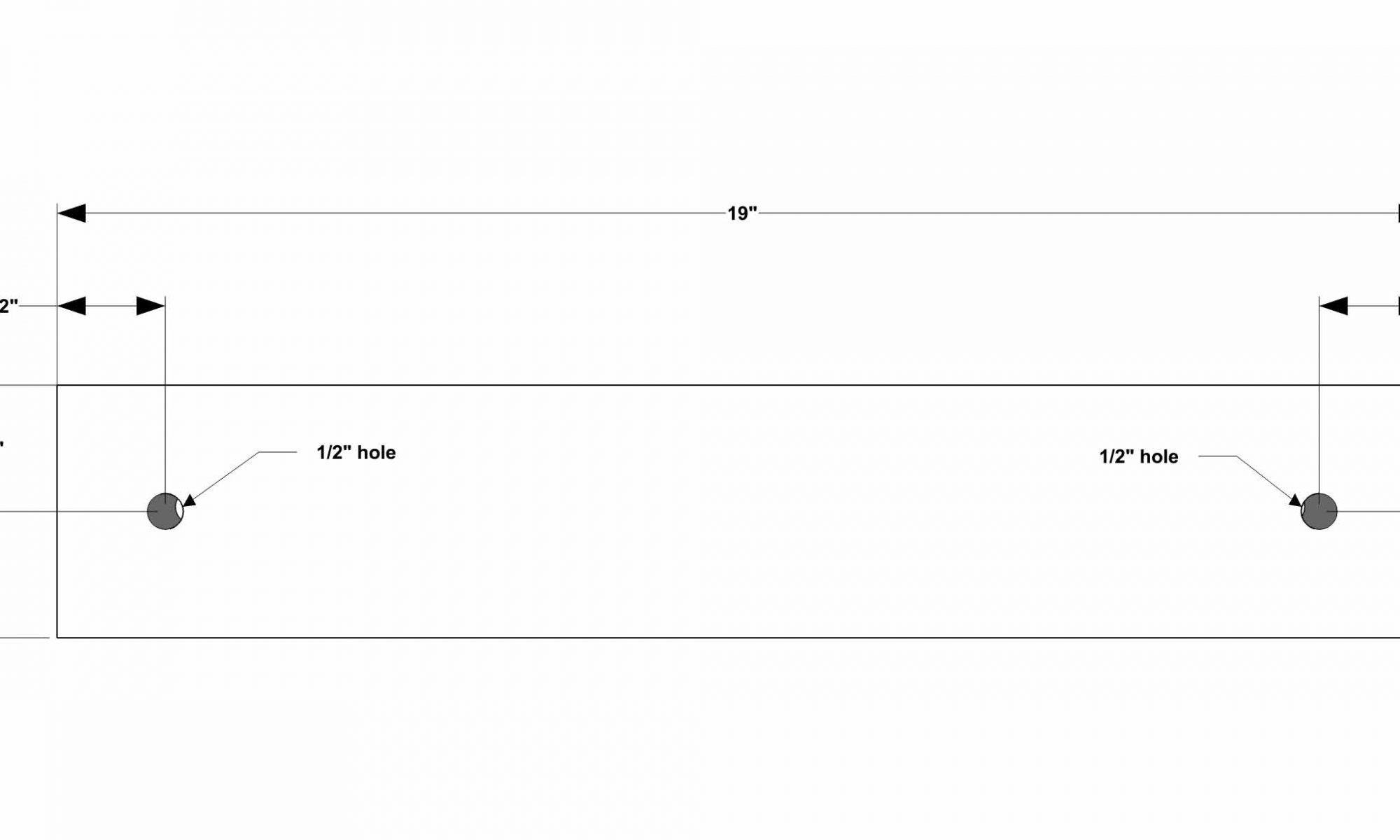

Next, cut out the Middle Frame Sides. Drill a 1/2” hole positioned 1-1/2” from each end and 1-3/4” from the top. You will need to repeat this step twice – once for each Side. Or you can clamp the Middle Frame Sides together and drill both holes at once through the pieces.
Cut and attach the Middle Frame Top and Bottom to the Middle Frame Sides as shown with glue and pocket screws.

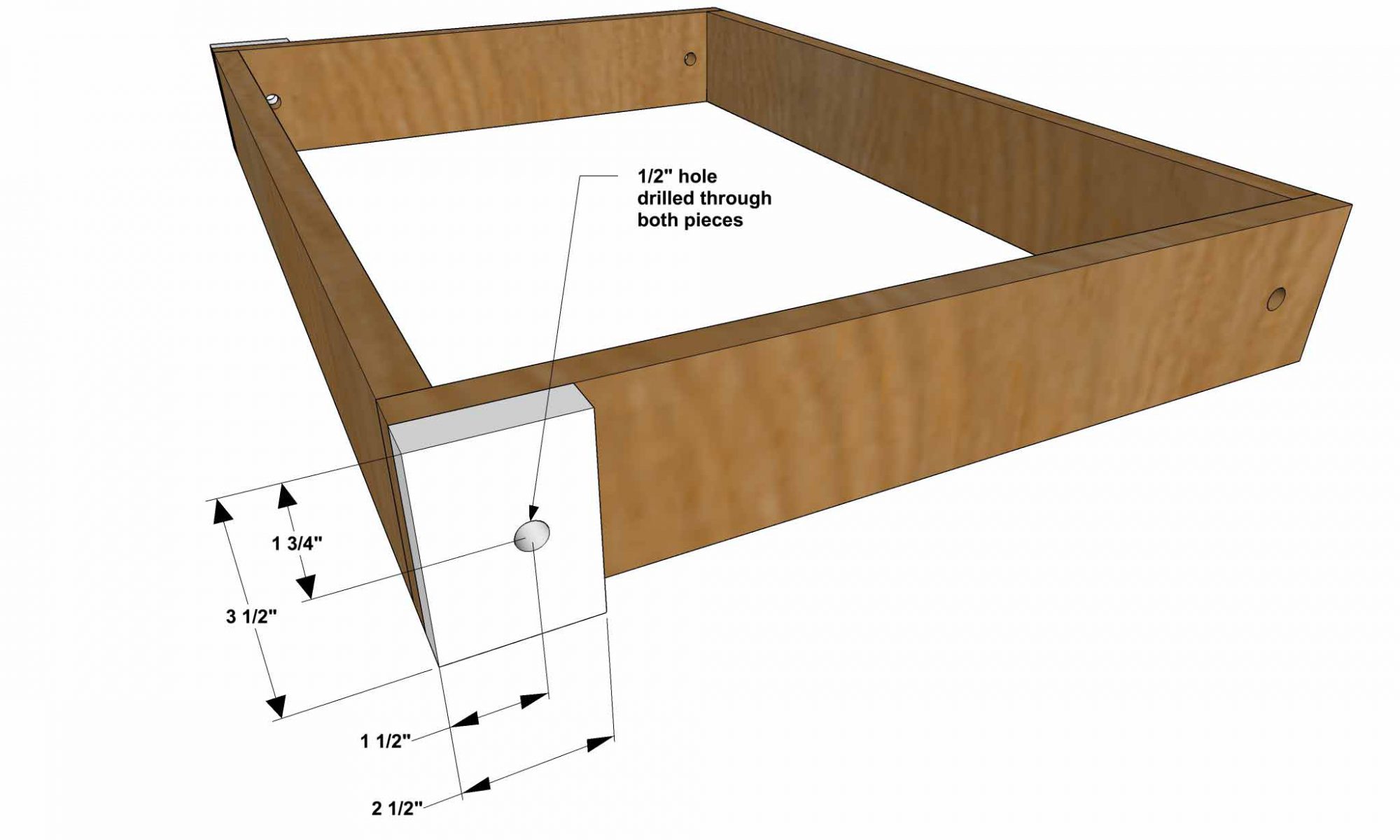

Next, cut the Middle Frame Spacers. Drill a 1/2” hole positioned 1-1/2” from the end and 1-3/4” from the top. You will need to repeat this step twice – once for each Spacer. Or you can clamp the Spacers together and drill both holes at once through the pieces. Align Spacers with the Sides so that the drilled holes match up and the edges are flush. Attach Spacers to the Middle Frame Sides as shown using glue and 1-1/4” pocket hole screws.

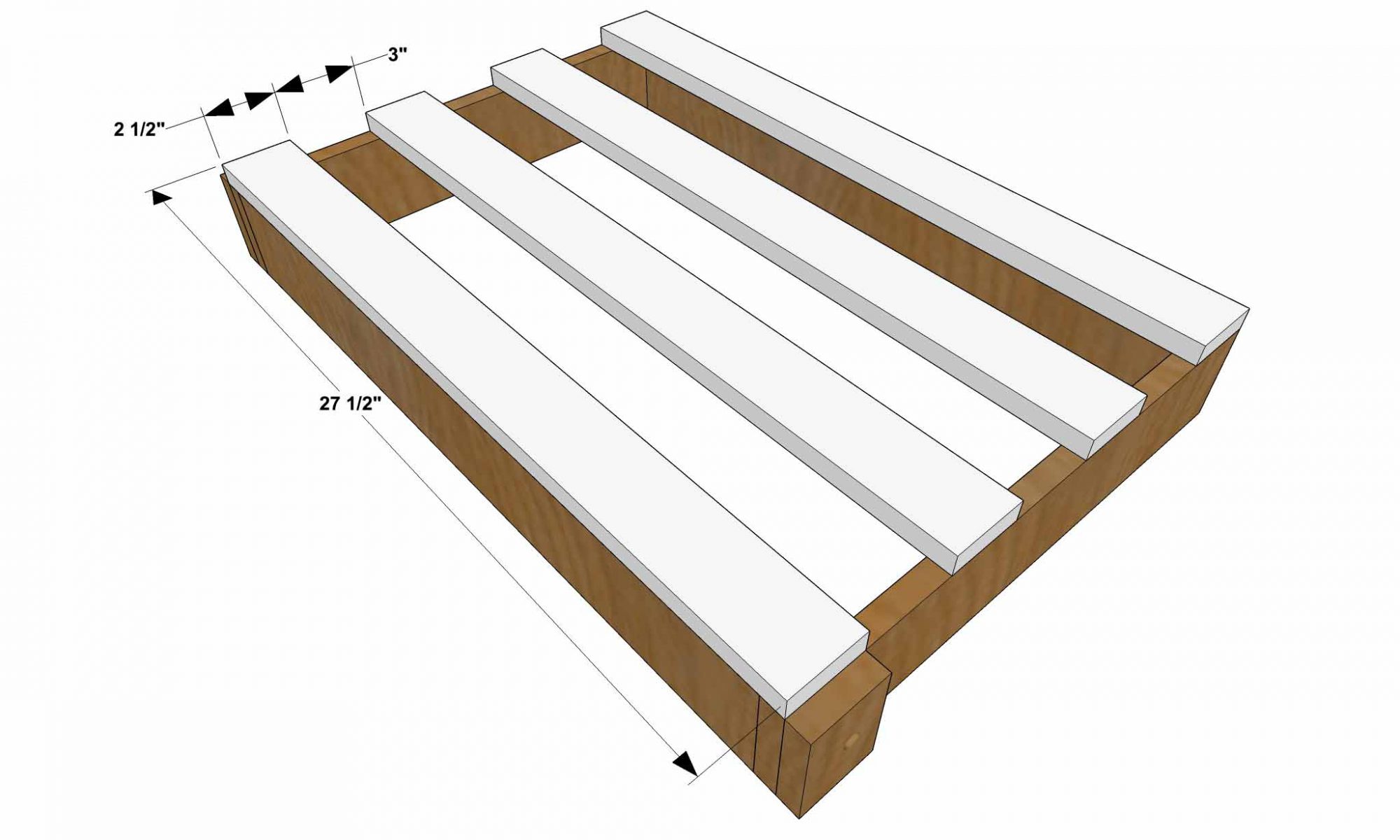

Cut out the Middle Frame Slats and attach as shown using glue and 1-1/4” brad nails. Each Slat will be spaced 3” apart.

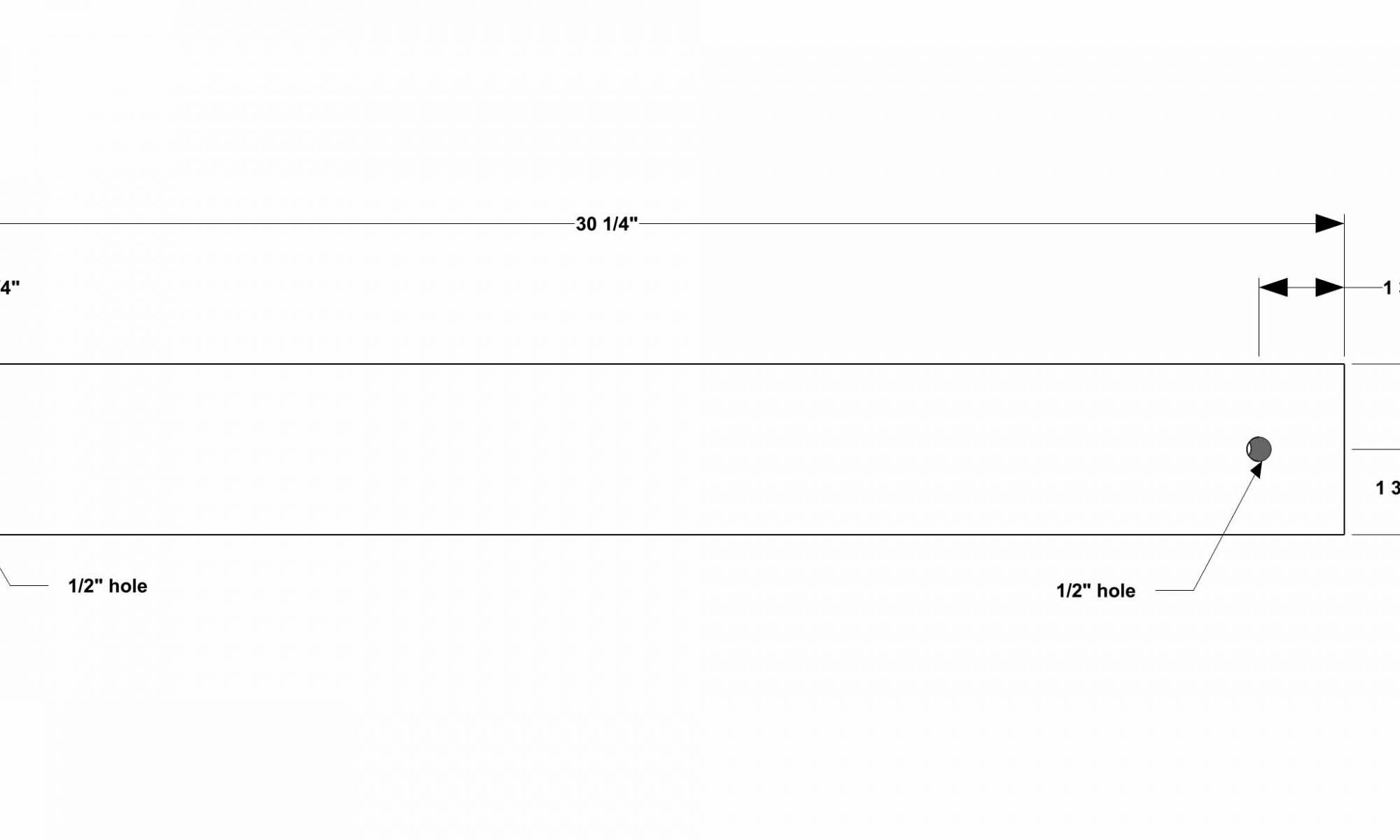

On to the last portion of the Futon! Cut the pieces for the Upper Frame Sides. Drill two 1/2” holes – one positioned 1-3/4” from one end, and the other 1-1/4” from the other end, both 1-3/4” from the top. You will need to repeat this step twice – once for each Side. Or you can clamp the Sides together and drill both holes at once through both pieces.

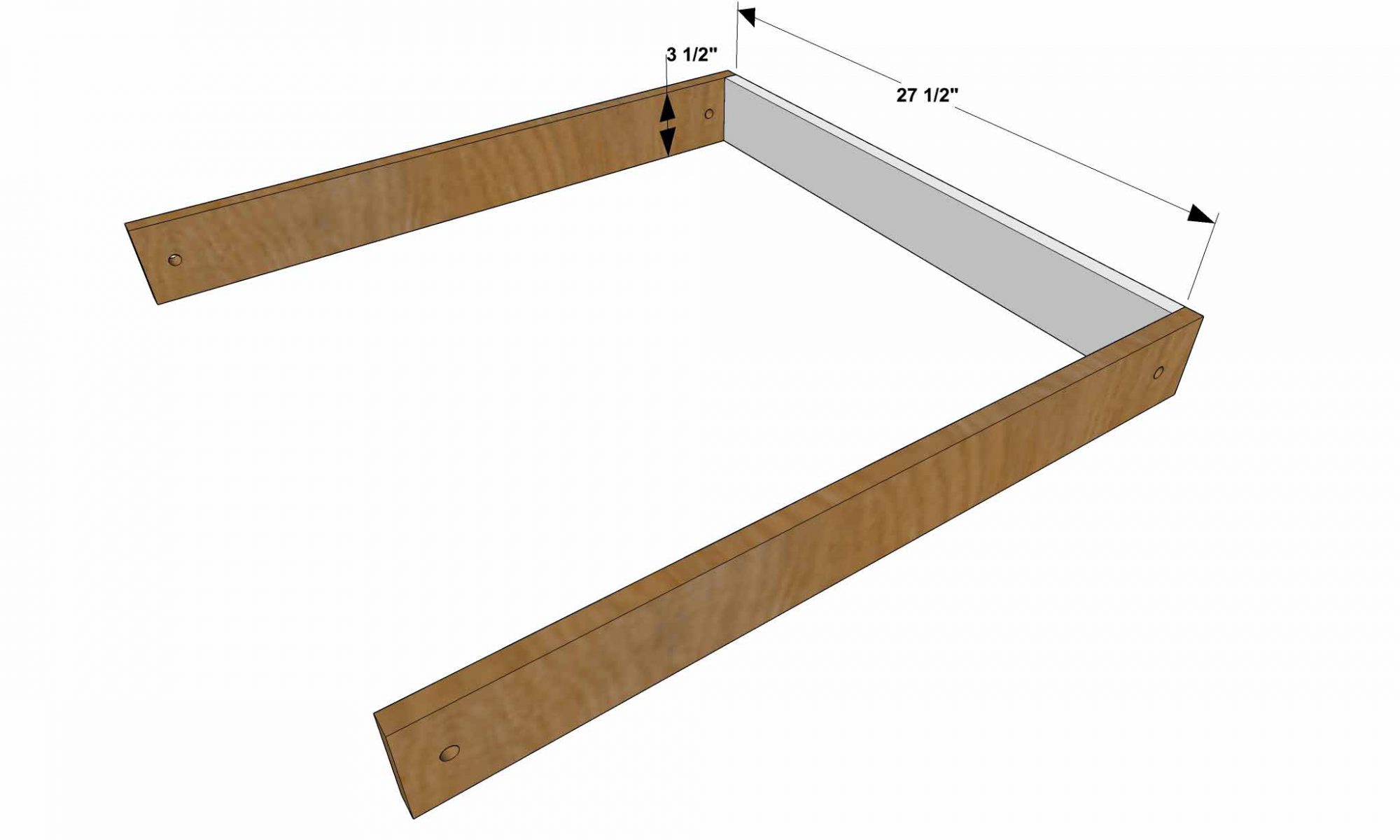

Next, cut the Upper Frame Top and secure to the Upper Frame Sides as shown using glue and 1-1/4” pocket hole screws.

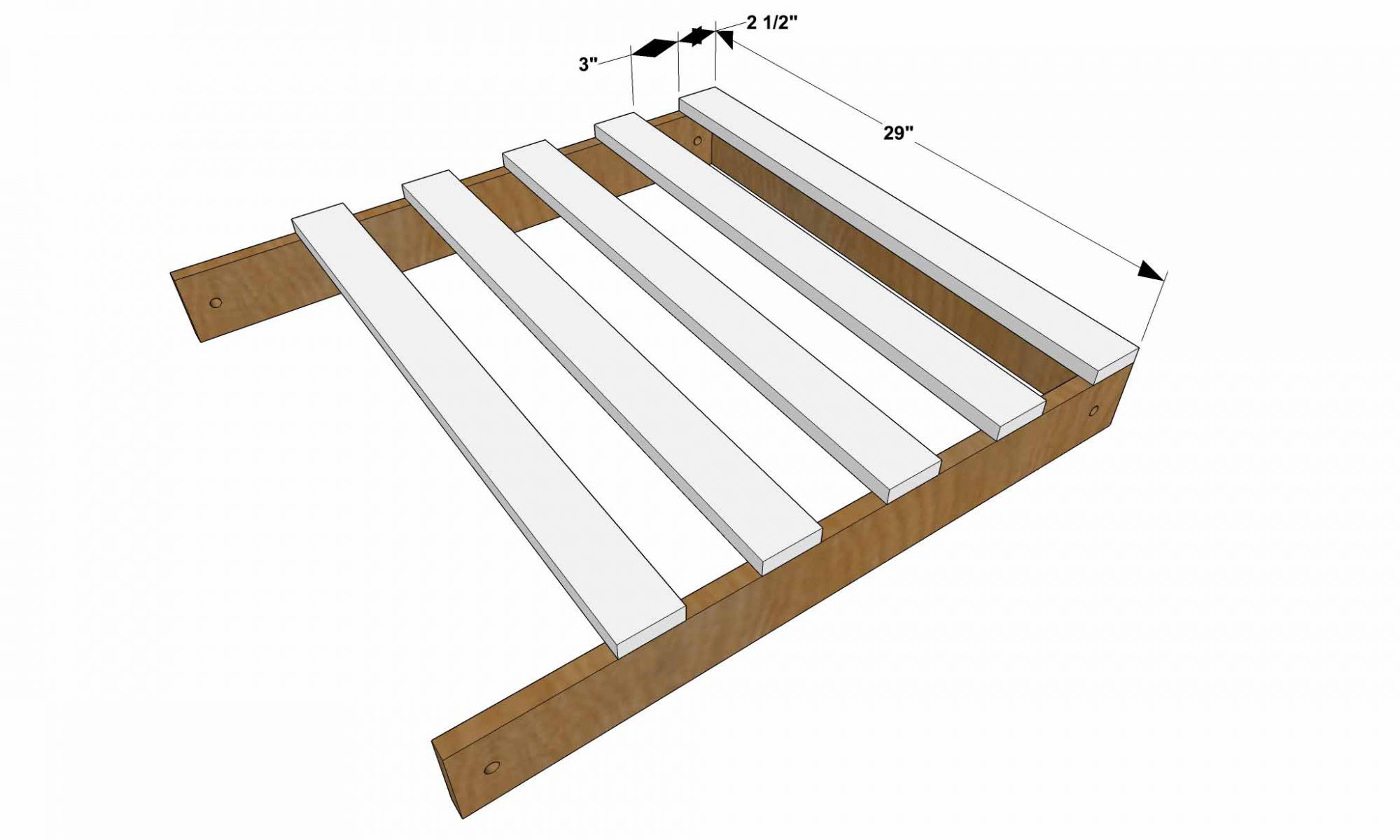

Cut out the Upper Frame Slats and attach as shown using glue and 1-1/4” brad nails. Each Slat will be spaced 3” apart.

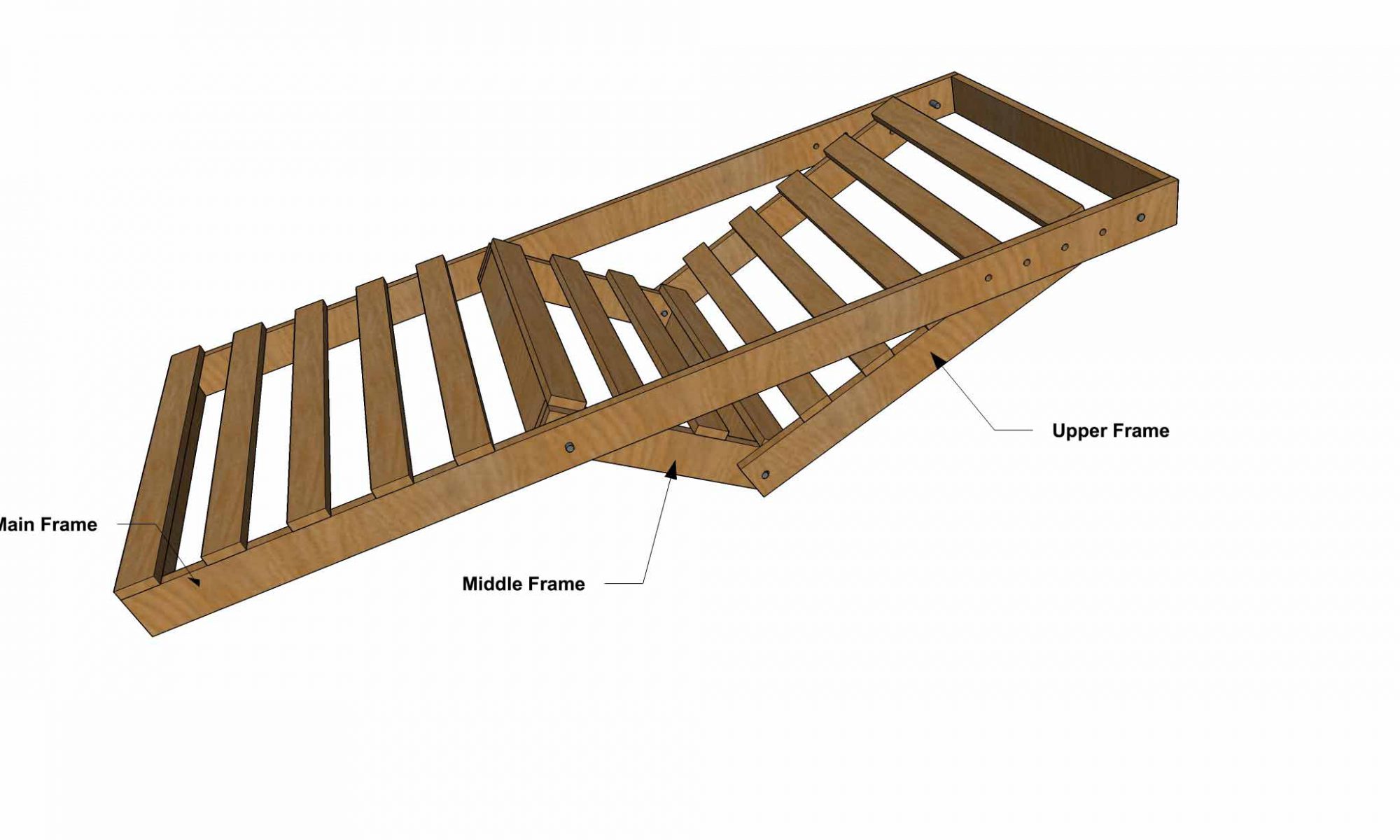

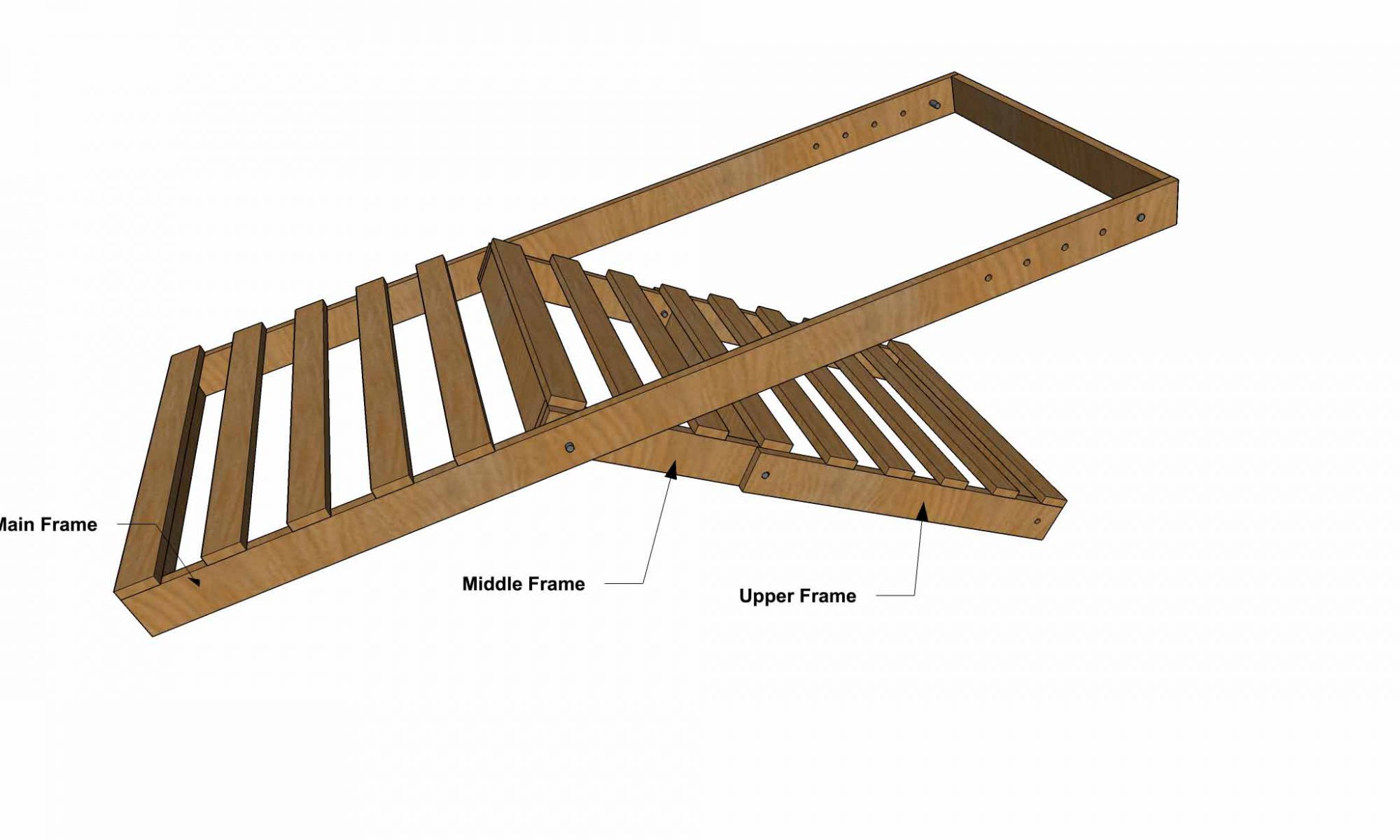

This is where the piece really starts to take shape! Lay out the Main Frame on a flat surface. Place the Middle Frame and Upper Frame within the Main Frame as shown. Attach the Upper Frame to the Middle Frame by aligning the drilled holes and inserting the (2) 2” clevis pins and hitch pin clips on both sides. Attach the Middle Frame to the Main Frame by aligning the drilled holes and inserting the (2) 3” clevis pins and hitch pin clips on both sides. Use the (2) 2” clevis pins and hitch pin clips to secure the Upper Frame to the Main Frame in the desired adjustment holes. Add a cushion for extra comfort! After finishing, you might find it helpful to apply a coat of paste wax to the areas of the Futon that pivot and rub against each other. Large washers may also be used for extra reinforcement at the end of the clevis pins. Lastly, use a sander on edges if you want a more rounded, softer appearance.
Check out how versatile this piece is! It can lay flat or incline to several positions. We’ve included a few more graphics for you to see this Futon in motion.
Fill any Screw, Nail or Pocket Holes, Sand and Finish as Desired. For Finishing Tips and Tricks visit my Finishing School
