- Tape Measure
- Saw – Jig, Circular, or Miter
- Drill
- ¾” holesaw or paddle bit
- Square
- Sander
- Kreg jig
- Brad nailer
- 2 – 1×2 at 6’
- 1 – ¾” dowel at 3’
- 2 – 2×2 at 6’
- 2 – 2×2 at 8’
- 1 – 2’ x 4’ sheet of ¾” plywood
- 1-1/4” pocket hole screws
- 1-1/4” brad nails
- 1-1/4” screws
- 1 sets of non-mortise hinges
- Wood filler
- Sandpaper
- Wood glue
- Finishing Supplies
- 2 – 2×2 at 65” – Shorter Side Legs
- 5 – 1×2 at 13-1/2” – Shorter Side Rungs
- 2 – 2×2 at 75-1/4” – Taller Side Legs
- 2 – ¾” dowels at 14-1/2” – Upper Rungs (Taller Side)
- 5 – 1×2 at 13-1/2” – Taller Side Rungs
- 5 – ¾” plywood at 12” x 13-1/4” – Tray Bottoms
- 5 – 1×3 at 12” – Tray Back
- 10 – 1×3 at 14” – Tray Sides
Before beginning to build, always check in on my site to make sure you have the most up to date set of plans, I occasionally update and change the plans to make the building process easier or to allow for less expensive purchasing of materials! Read through the entire set of instructions and all comments before beginning this project. If you print out or save plans, be sure to check in on my site to be sure you have the most up to date set of plans, as I occasionally update things for ease of building or buying. If you are new to building, read through the GETTING STARTED section and other articles found under the BUILD tab in the menu on my site, it has valuable information about how to get started, tools and techniques. If you are unfamiliar with the finishing process, visit my Finishing school for some tips and tricks for painting like a pro and for special finishing practices. Use glue to secure your joints and Consider Painting or Staining individual sections prior to assembling. This makes the paint application virtually flawless. Coat with a spray on Poly or Wipe on Poly to protect your finish and your piece and it will last for ages. Adhere to all safety standards and guidelines, and be sure you follow safety protocol throughout your build. If you are unsure about whether you are building safely, run a quick online search for the tool or technique you are using, or contact me via email or post to the forum before you move ahead. My contact info can be found in the menu of my site.

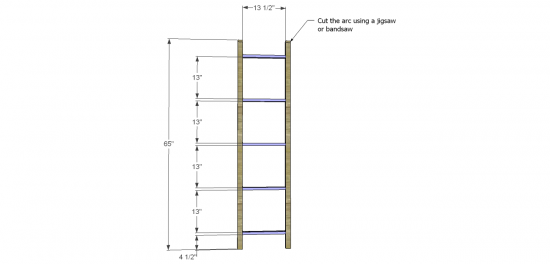

Cut the pieces for the shorter side legs. Draw the arc at the top edge of each leg using a compass or a soup can, then cut out using a jigsaw or bandsaw.
Cut the pieces for the shorter side rungs. Set the Kreg jig for ¾” material and drill pocket holes in each end of each piece. Secure to the legs as shown using glue and 1-1/4” pocket hole screws.

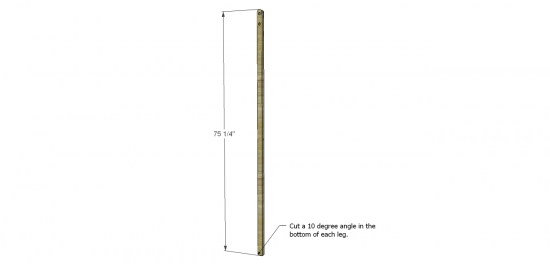

Cut the pieces for the taller side legs. Cut a 10 degree angle in the bottom of each leg, and cut the arc using a jigsaw or bandsaw to match the shorter side legs.

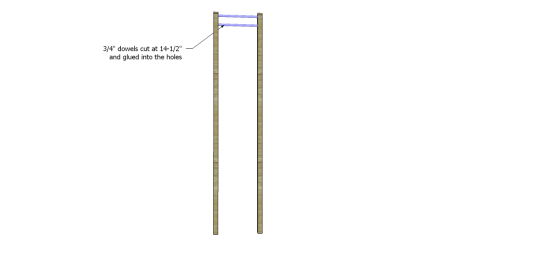

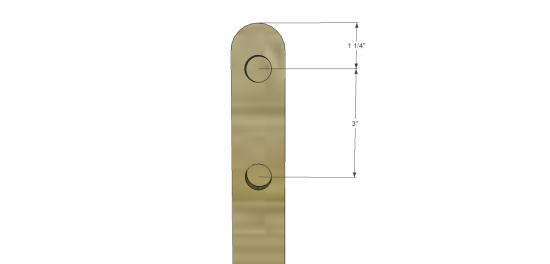

Use a ¾” holesaw or paddle bit to cut a ½” deep hole in two places at the top of each leg noting that there will be a right leg and a left leg. Cut two pieces of the dowel rod at 14-1/2” and glue the dowels in the holes of each leg.

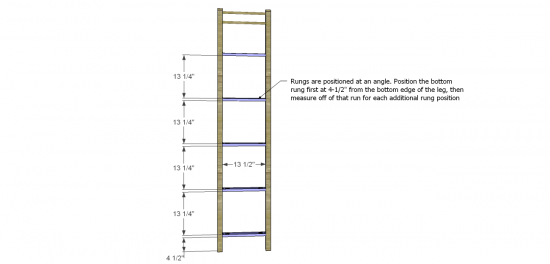

Cut the pieces for the rungs. The rungs will be positioned at a 10 degree angle. Measure up 4-1/2” from the front edge of the legs as well as the back edge, and draw a line to connect the two marks. Position the first rung along this line and secure using glue and 1-1/4” pocket hole screws. Space the remaining rungs accordingly and secure them in the same manner as the first rung.

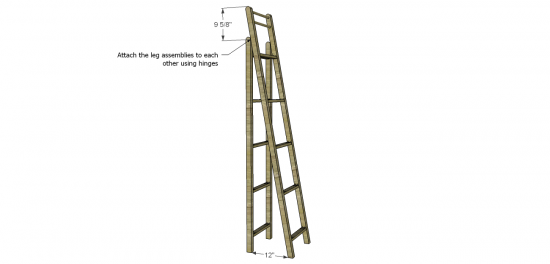

Install the hinges on each leg assembly as shown.

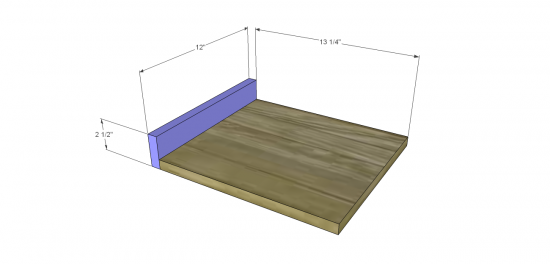

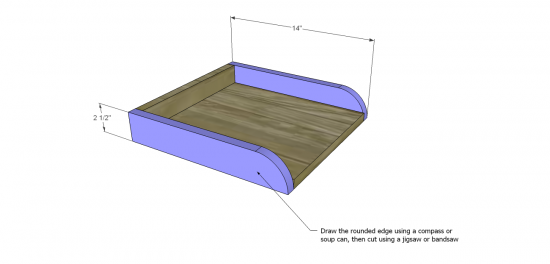

Cut the pieces for the trays. Attach the back piece to the back edge of the tray using glue and 1-1/4” brad nails. Draw the arc on the side pieces using a compass or soup can then cut using a jigsaw or bandsaw. Secure the sides using glue and 1-1/4” brad nails.

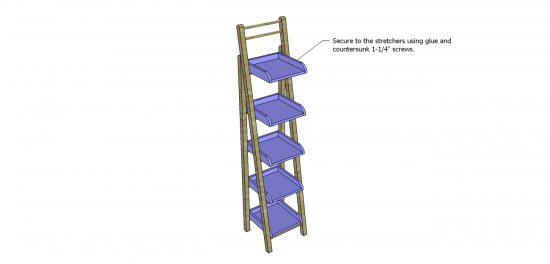

Position each of the trays on the rungs with the back edge flush with the back edge of the shorter side rungs. Secure using glue and countersunk 1-1/4” screws.
Fill any Screw, Nail or Pocket Holes, Sand and Finish as Desired. For Finishing Tips and Tricks visit my Finishing School
